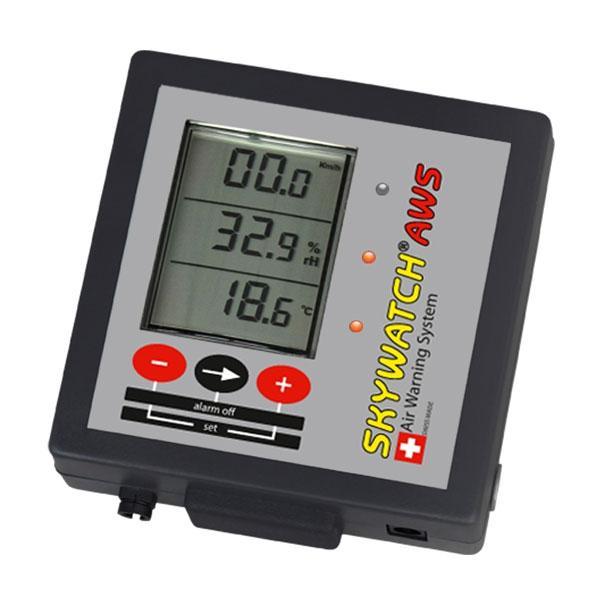

AIR WARNING SYSTEM (AWS) Kit 1

Skywatch Air Warning System (AWS) by JDC

General data

Skywatch AWS offers three functions: it measures, displays and warns their user both visually and audibly of air speed, temperature and humidity.

Minimum and maximum values for temperature and humidity can be adjusted individually. Air (wind) speed can measured on two levels (Hi & Lo). The control unit, which operates independently from the sensors, is designed for multiple applications.

The Skywatch AWS is particularly recommended for:

• Agriculture and horticulture: plant protection, irrigation schemes, cultivation in green houses, produce storage, risk of frost to harvest, etc…
• Agri-foodstuffs: storage and processing of produce and foodstuffs, product drying (tobacco, cereal), wine cellars, etc…
• Management of comfort levels in public places: air conditioning, archives, museums, concert halls, etc…
• Meteorology: study of environment, etc…
• Botany and zoology: vivariums, terrariums, zoos, etc…

Six values can trigger the alarm (two for wind, two for humidity and two for temperature). These values are settable in rising edge or in falling edge. The duration of alarm can be set for every alarm.

There are four relay outputs (kit 4 described below). The inactive state of each relay can be selected from no (normally open) and nc (normally closed). The user assigns a relay output to every alarm. Several alarms can be assigned to one relay output.

Technical specifications
Wind

• Units
• Resolution
• Measuring cycle
• Accuracy
• Measuring range
• Alarms

km/h, mph, m/s, fps and knots
1 unit
each second, with an average on 4 seconds
± 3% if horizontally
from 5 to 150 km/h
High and Low, programmable in 1 unit pitch, from 5 to 150

Humidity

• Units
• Resolution
• Measuring cycle
• Accuracy
• Measuring range
• Alarms

%rH
0,5
1 measurement every 16 seconds
± 3,5 %rH 20 to 80 %rH
2 %rH -100 %rH
2 levels, min. and max., programmable in 1 unit pitch

Temperature

AWS-Kit 1 AWS-Kit 2 AWS-Kit 3 AWS-Kit 4

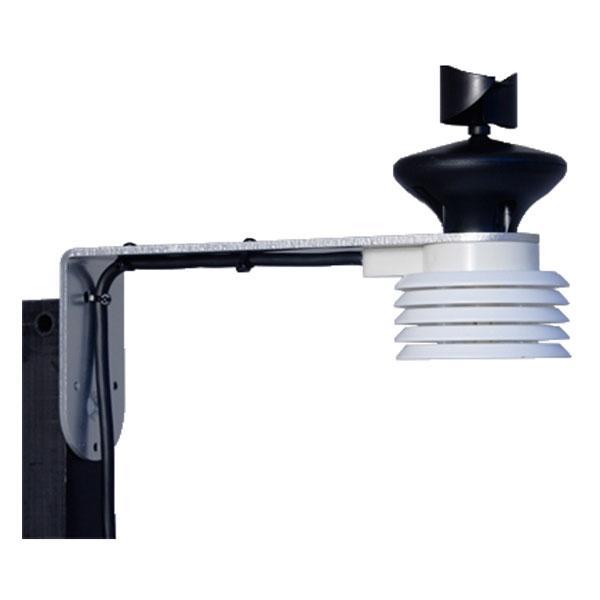

Display unit with clip sensor (temperature and humidity), 15m cable, propeller with wind sensor and fixation. Display unit, temperature and humidity sensor with 5m cable, propeller, wind sensor and fixation with 15m cable. Display unit, temperature, humidity and wind sensor with propeller and fixation with 5m cable. Display unit with external alarm interface, temperature and humidity sensor with 5m cable, propeller, wind sensor and fixation with 15m cable.
